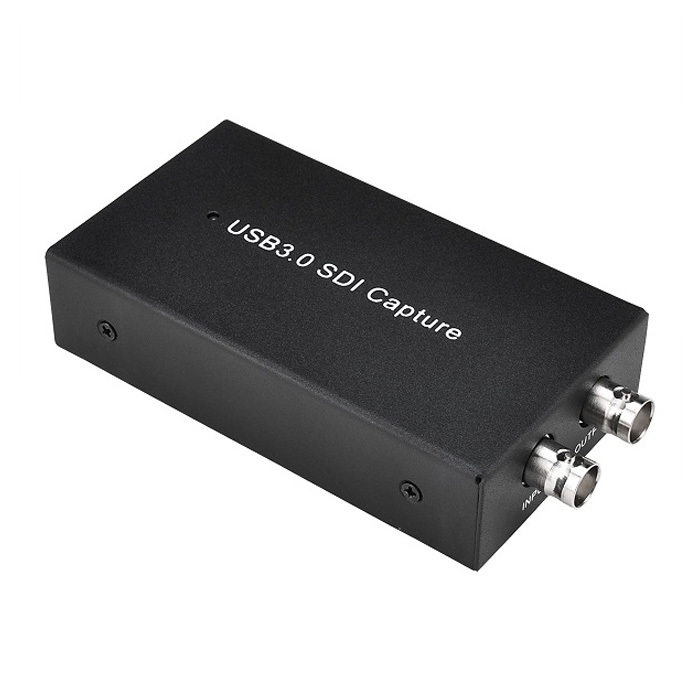

Professional SDI to USB 3.0 Video Capture Box
This product category features professional-grade SDI-to-USB 3.0 video capture devices engineered to convert high-definition serial digital interface (SDI) signals from broadcast television cameras, medical imaging equipment, and production switchers into high-speed digital data streams for live streaming, telemedicine, and professional video archiving. Housed within a heavy-duty, shielded aluminum alloy enclosure that provides exceptional heat dissipation and EMI protection, these conversion blocks guarantee zero-latency signal processing under continuous 24/7 broadcasting loads. The system incorporates an integrated hardware loop-through (SDI loopout) port, allowing engineers to simultaneously monitor raw video feeds on local reference displays while capture parameters execute on the host machine.
Optimized specifically for high-volume international B2B procurement, television studio supply chains, specialized medical equipment networks, and system integration tenders, this unbranded media platform supports seamless UVC (USB Video Class) and UAC (USB Audio Class) protocol compliance. The driverless architecture allows instant plug-and-play deployment across major enterprise operating systems and compatibility with professional encoding software platforms. Global corporate clients can specify exact processing chipsets (supporting up to 1080p 60fps or 4K configurations), choose custom powder-coated shell colors, request specialized dual-channel audio line-in nodes, and deploy factory-direct Private Label branding and packaging.
| 1. Available Configurations and Technical Variations | |
|---|---|
| Host Connectivity Port | High-speed USB 3.0 (Type-A or Type-C options) supporting data throughput up to 5 Gbps; Backward compatible with legacy USB 2.0 frames |
| Video Input/Output Ports | 1 x SD/HD/3G-SDI BNC Input receptacle (75 ohms); 1 x SD/HD/3G-SDI BNC Loopout Output receptacle for local monitor matrix syncing |
| Supported Input Standards | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M; Automatically detects input signal audio and video formats |
| Encoding Resolution Matrix | Maximum capture performance: Full HD 1080p at 60 frames per second (60fps); Supports uncompressed YUY2 and compressed NV12 / MJPEG streams |
| Audio Capture & Sync | Extracts embedded SDI audio up to 48 kHz stereo LPCM; Synchronous audio and video processing meeting strict hardware broadcasting metrics |
| Chassis Construction | Industrial-grade heavy-duty extruded aluminum chassis with matte anti-scratch powder coating; Integrated mounting holes for server rack integration |
| Dimensions & Structural Mass | Average enclosure footprint: 105 mm x 55 mm x 20 mm; Net unit weight range: 125 g – 145 g depending on exact inner board topology specification |
| 2. B2B Order Parameters, MOQ, and Customization | |
| Minimum Order Quantity (MOQ) | From 1,000 complete units or 1 x 20ft FCL container (Optimized for anti-shock individual static-shielded bubble wrapping and bulk master boxes) |
| Wholesale Commercial Tiers | Volume price indexing: Tier 1 (1,000-3,000 units); Tier 2 (3,001-7,000 units); Tier 3 (7,001+ units with direct factory production priority allocation) |
| Interface Assembly Modifications | Available factory hardware upgrade: Dual-link HD-SDI input modules or alternative models with independent 3.5mm analog audio line-in/out tracks |
| OEM / Private Label Services | Bespoke chassis pad printing or laser engraving, customized anodizing color selection, personalized firmware device naming, and custom retail gift boxes |
| Logistics, Port & Fulfillment | FOB Hong Kong / FOB Shenzhen. Shockproof internal molded packaging, multi-layer corrugated export master cartons with CE, FCC, and RoHS logs |
| 3. Associated Supply: Components, Spare Parts, and Accessories | |
| Broadcast Signal Cables | Factory concurrent procurement: High-shielded 75-ohm RG6 BNC cables with copper cores (1.0m to 5.0m lengths), USB 3.0 Type-A to Type-B/Type-C cords |
| Related Broadcast Accessories | Wholesale batches of complementary hardware: SDI distribution amplifiers (splitters), HDMI-to-SDI converters, and professional camera mounting clamps |
| Testing & Calibration Rigs | Digital SDI pattern generators, real-time waveform monitors, USB 3.0 data bandwidth testers, and multi-channel hardware burn-in aging racks for warehouse QA |
| B2B Protection & Storage Upgrades | Bespoke hard-shell EVA storage carry cases with tailored internal padding compartments and custom Private Label corporate logo application options |
Request Product and Shipping Quote
Order this product wholesale, or order assembly and delivery of this product category from the manufacturer, product grouping and consolidation, or order custom manufacturing of this product or product category to suit your brand and production level. We offer this product and its batch in bulk, as well as components, accessories, and consumables wholesale
